PCU Map

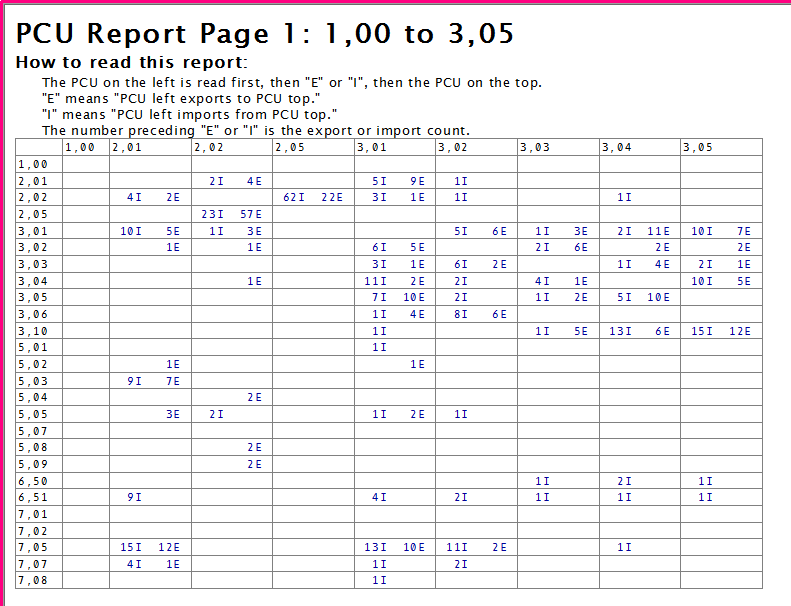

The PCU Map shows you the interaction between PCUs, listing what blocks are exported and imported between two units. Access the PCU Map from the Miscellaneous Indices chapter in the Table of Contents by clicking on the PCU MAP entry. Click on the PCU Report Page link to bring up a table similar to the following:


No tool pcu map 1.png


Click on a link in the table to bring up the specific block interaction between two chosen PCUs.


No tool pcu map 2.png
